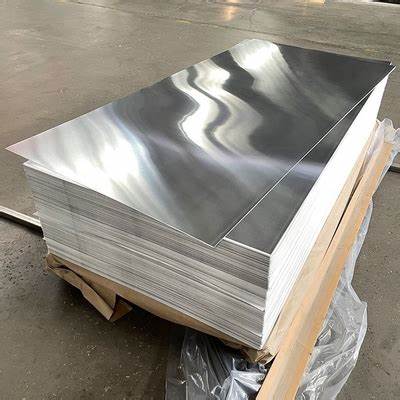

Aluminized Steel Sheet Plate
Product Overview
aluminized steel sheet plates are carbon steel sheets coated on both sides with an aluminum-silicon alloy through a hot-dip process. This coating creates a strong metallurgical bond, combining steel's strength with aluminum's corrosion resistance and heat reflectivity.
Key Features
- High-Temperature Resistance
- Corrosion Resistance
- Heat Reflectivity
- Durability: Lasts 2 to 5 times longer than galvanized steel
- Cost-Effective with long service life
Technical Specifications
- Thickness: Ranges from 0.3mm to 3.0mm.
- Width: Typically between 600mm and 1500mm, customizable based on client needs.
- Aluminum Coating Weight: Varies from 60 GSM to 310 GSM.
Types of Aluminized Steel Sheets
There are two primary types of aluminized steel sheets:
- Type 1: Heat-Resistant Sheets These sheets can withstand high temperatures up to 640°C. They are made from low-carbon steel coated with a 20–25 micron thick aluminum-silicon alloy, containing 6–8.5% silicon.
- Type 2: Corrosion-Resistant Sheets These sheets have a thicker coating compared to Type 1 and are primarily designed for corrosion resistance. However, due to the thicker, low-melting-point coating, Type 2 sheets have reduced weldability.
Additional Information
Aluminized steel is extensively used in automotive components, industrial ovens, and building materials due to its excellent resistance to oxidation and high-temperature strength. The reflective surface also enhances energy efficiency by reducing heat loss.
Aluminized Steel Sheet Weight Chart
| Thickness (mm) | Weight per m² (kg) |
|---|---|
| 0.5 | 3.93 |
| 1.0 | 7.85 |
| 1.5 | 11.78 |
| 2.0 | 15.70 |
| 3.0 | 23.55 |
Aluminized Steel Sheet vs. Galvanized Steel
| Feature | Aluminized Steel | Galvanized Steel |
|---|---|---|
| Coating Material | Aluminum-Silicon Alloy | Zinc |
| Heat Resistance | Excellent (up to 650°C) | Moderate |
| Corrosion Resistance | Superior in high-heat applications | Good in damp environments |
| Appearance | Smooth, reflective | Matte or shiny |
| Weldability | Lower due to coating | Higher |
Why Choose Aluminized Steel?
- Superior corrosion resistance in harsh environments.
- Lightweight and easy to fabricate.
- Ideal for high-temperature applications.
- Provides aesthetic appeal with a smooth finish.
Our company is Aluminized Steel Sheet Type 1 suppliers in india, .in our warehouse you’ll find a large inventory of Astm A463 Type 1 Sheet, Astm A463 Type 1 Plate at very low price in Mumbai, India. since 15 years Aluminized Steel Type 1 Plate suppliers in india in various sizes & finishes.Our company is finding for more Stockholders in Middle East, Europe, Africa, Far East Asia to sell our Astm A463 Type 1 Sheet. so mail to to become our authorised dealer & distributor of Type 1 Aluminized Steel Plate in your country.
We maintain stock & supply Astm A463 T1-40 Sheet to more than 60 locations Offer A wide range of Astm A463 T1-25 Sheet in all sizes including 1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm etc with Hot rolled plate (HR), Cold rolled sheet (CR), 2D, 2B, SATIN (Met with Plastic Coated), BA NO(8) finish
Contact our reseller for Astm A463 T1-25 Plate in China, Taiwan, Senegal, Angola, Bangladesh, Oman, Korea, Thailand, Tanzania, Singapore, Spain, USA, UAE, Kenya, Australia, Ghana, Indonesia, Ethiopia, Philippines, Kuwait, Japan, Argentina, Qatar, Nigeria, Malaysia, Austria, Peru, Mexico, France, Germany, Mayanmar, Zimbabwe, Vietnam, Israel, UK, Italy, South Africa, Saudi Arabia (KSA),Trinidad And Tobago for lowest price. find free sample of Astm A463 T1-40 Plate. call us or mail to for Astm A463 Type 1 Plate price List.
Express delivery of Astm A463 Type 1 Sheet Aluminized Steel in Rajasthan, Ghaziabad, Maharashtra, Delhi, Karnataka, Pune, Chennai, Bangalore, Ludhiana, Kolkata, Bhosari, Nagpur Indore, Chhattisgarh Gurgaon, Khopoli, Jaipur, Rajkot, Aurangabad, Vadodara, Ahmedabad, Punjab, Haryana, Faridabad, Raipur, Kolhapur, Karnataka, Gujarat, West Bengal, Madhya Pradesh, Tamil Nadu, Uttar Pradesh.
Know the Actual Price of Astm A463 Type 1 Plate Aluminized Steel before you buy Type 1 Aluminized Steel Plate from India. make an enquiry for Astm A463 Type 1 Plate to check types & sizes because if your plate type, finish, grade and size matches with our huge inventory we can give you at lowAstm A463 T1-40 Plate price list . you can mail to for Astm A463 Type 1 Sheet price list
Call Now For Aluminized Steel Sheet Type 1 free sample
| SA 463 Type Aluminized Steel Sheet Type 1 Specification | ASTM A463 / ASME SA463 |
|---|---|
Standard
| ASTM, DIN, GB, JIS |
| Aluminized Steel Sheet Type 1 Coating | TI-13 TI-25 TI-55 |
| ASTM A463 Type aluminized steel type 1 plate Grades | SGLCC,SGLCH,DX51D,ASTM A792 |
| Aluminized Steel Sheet Type 1 Thickness | 0.16mm-2.0mm |
| Aluminized Steel Sheet Type 1Width | 600mm-1250mm(can be Customized) |
| Aluminized Steel Sheet Type 1 Length | 1000-6000m or as required |
| Aluminized Steel Type 1 Plate Quality | Commercial/ Drawing/ Deep Drawing quality possible. |
| Aluminized Steel Type 1 Plate Coating | Micron- 40 micron / 60 micron / 80 micron / 120 |
| Aluminized Steel Sheet Type 1Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2D, 2B, SATIN (Met with Plastic Coated), BA NO(8) |
| Aluminized Steel Type 1 PlateSurface Treatment | Chromated/passivation and oiled or unoiled, Anti-finger print |
| Aluminized steel Sheet/Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Aluminized Steel Type 1 Plate Hardness | Quarter Hard, Half Hard, Soft, Hard, Spring Hard Sheet suppliers |
| Stock available in form of | Sheet, Plate, Clad Plate, Plain Sheet, Coils, Foils, Rolls, Strip, Flats, Flat Shim, Blank (Circle), sheared, annealed, Shim Sheet, Rolling Sheet, Flat Sheet, Rolling Plate, soft annealed, descaled, tread plate, Checker Plate |
| Aluminized Steel Type 1 PlateDimensions | |
| Aluminized Steel Type 1 Plate Profiling | To provide a full profiling service in India we use numerous profiling methods including:
|
| Plasma profiles | To customer drawings |
| Value added services | laser cutting, Plasma cutting, waterjet cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. |
| Our stockyad location for fast delivery across India | Tirunelveli, Chennai, Pune, Noida, Dhanbad, Shivamogga, Pimpri-Chinchwad, Agra, Bhubaneswar, Coimbatore, Mumbai, Hyderabad, Tiruchirappalli, Bengaluru, Thiruvananthapuram, Ahmedabad, Navi Mumbai |
| Specialized in |
|
| Aluminized Stainless Steel Sheet Manufacturers | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, SAIL, VDM, Nippon Metal, SAIL, ESSAR, JINDAL, TATA, BHUSHAN |
| Packing of ASME SA 463 Type Aluminized Sheet | water-proof paper inside and then steel sheet protection out side with steel strip.or as per customers’ requirements |
We can supply Aluminized Steel Sheet Type 1 metal cut to length, slit to width, polish and plate profile forms to meet customer specific requirements. We provides Aluminized Steel Type 1 Plate plasma and oxy cutting.
Please note this is an approx Aluminized Steel Sheet Type 1 price. For final Astm A463 Type 1 Sheet price in india please mail us.
Aluminized Steel Type 1 Plate
Aluminized Steel Sheet Type 1
Aluminized Steel Type 1 Coil
Aluminized Steel Type 1 Strip
Aluminized Steel Type 1 Strips
Aluminized Steel Type 1 Shim Stock
Aluminized Steel Type 1 Foils
Aluminized Steel Type 1 Rolling Sheet
Aluminized Steel Type 1 Flat Sheet
Aluminized Steel Type 1 Flat Shim
Aluminized Steel Type 1 Perforated Plate
Aluminized Steel Type 1 Polished Plate
Aluminized Steel Type 1 Cold Rolled Sheet
Aluminized Steel Type 1 Hot Rolled Sheets
Aluminized Steel Type 1 Hot Rolled Plates
Aluminized Steel Type 1 Hot Rolled Profiles
Aluminized Steel Type 1 Cold Rolled Plate
Aluminized Steel Type 1 Clad Plate
ASME SA 463 Type Aluminized Foil Sheet
Aluminized Steel Type 1 Perforated Sheet
Dimensions: widths 1000/1220/1500 mm, lengths 2000/2500/3000 mm.
Size (in Inches) | Size (in mm) | ||
|---|---|---|---|
.125″ | .875″ | 3.18 | 22.2 |
.134″ | 1″ | 3.40 | 25.4 |
.156″ | 1.125″ | 3.96 | 28.6 |
.187″ | 1.250″ | 4.75 | 31.8 |
.250″ | 1.500″ | 6.35 | 38.1 |
.312″ | 1.750″ | 7.92 | 44.5 |
.375″ | 2″ | 9.53 | 50.8 |
.500″ | 2.500″ | 12.7 | 63.5 |
.625″ | 3″ | 15.9 | 76.2 |
.750″ | 19.1 | ||
aluminized steel type 1 plate Thickness
0.6 mm | 0.8 mm |
1.0 mm | 1.2 mm |
1.5 mm | 1.6 mm |
1.8 mm | 2.0 mm |
3.0 mm | 4.0 mm |
5.0 mm | 6.0 mm |
8.0 mm | 10.0 mm |
12.0 mm | 15.0 mm |
20.0 mm | 25.4 mm |
A leading wholesale dealers & distributor of astm a463 t1-40 sheet in India offer these astm a463 type 1 sheet in 2B, BA, No. 4, No.8 or Customer-specific Finish.
Astm A463 Type 1 Plate Aluminized Steel Metric Dimensions | ||
|---|---|---|
Surface finish | Thickness (mm) | Width (mm) |
2B – Cold rolled, heat treated, pickled, skin passed | 0.25-8.0 | max. 2032 |
2D – Cold rolled, heat treated, pickled | 0.4-6.35 | max. 1524 |
2E – Cold rolled, heat treated, mechanically descaled | 0.4-8.0 | max. 2032 |
2R – Cold rolled, bright annealed | 0.25-3.5 | max. 1524 |
2H – Work hardened | 0.4-6.35 | max. 1524 |
Polished, brushed | 0.5-4.0 | max. 1524 |
Thick (mm) | Width (mm) | Length (mm) | Surface Finish |
|---|---|---|---|
0.3 | 1219 , 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
0.4 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
0.5 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
0.6 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
0.7 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
0.8 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
0.9 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
1.0 | 1219, 1000 | 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
1.2 | 1500, 1219, 1000 | 3000, 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
1.5 | 1500, 1219, 1000 | 3000, 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
2.0 | 1500, 1219, 1000 | 3000, 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
2.5 | 1500, 1219, 1000 | 3000, 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
3.0 | 1500, 1219, 1000 | 3000, 2438, 2000, other | 2B, BA, NO.4, NO.8, HL |
Astm A463 Type 1 Plate Aluminized Steel Imperial Dimensions | ||
|---|---|---|
Surface finish | Gauge (in) | Width (in) |
2B – Cold rolled, heat treated, pickled, skin passed | 10-24 | max. 72* |
2D – Cold rolled, heat treated, pickled | 12-24 | max. 60 |
BA Mexinox only | 18-28 | max. 48 |
Polished (not brushed) | 11-24 | max. 60 |
Temper rolled Mexinox only | 13-29 | max. 48 |
Material | Size |
|---|---|
astm a463 type 1 aluminized steel Foil | .001” |
astm a463 type 1 aluminized steel Foil | .002” |
astm a463 type 1 aluminized steel Foil | .003” |
astm a463 type 1 aluminized steel Foil | .004” |
astm a463 type 1 aluminized steel Foil | .005” |
astm a463 type 1 aluminized steel Foil | .006” |
astm a463 type 1 aluminized steel Foil | .007” |
astm a463 type 1 aluminized steel Foil | .008” |
astm a463 type 1 aluminized steel Foil | .009” |
Astm A463 Type 1 Aluminized Steel Sheet & Foil Thickness
Thickness (in mm) | |
|---|---|
0.004, Temper: As rolled | 0.2, Temper: Annealed |
0.005, Temper: As rolled | 0.2, Temper: Half hard |
0.0065, Temper: As rolled | 0.25, Temper: Annealed |
0.0076, Temper: As rolled | 0.25, Temper: Half hard |
0.01, Temper: As rolled | 0.30, Coil width: 15.5, Temper: Half hard |
0.02, Temper: As rolled | 0.38, Temper: Annealed |
0.02, Temper: Half hard | 0.5, Temper: Half hard |
0.025, Temper: As rolled, Condition: Surface oxide | 0.75, Temper: Half hard |
0.025, Temper: As rolled | 1.0, Temper: Annealed |
0.05, Temper: Half hard | 2.0, Temper: 1/4 Hard |
0.05, Temper: Quarter hard | 2.0, Temper: Half hard |
0.075, Temper: Half hard | 3.0, Temper: Annealed |
0.1, Temper: Half hard | 3.0, Temper: 1/4 Hard |
0.1, Coil width: 10, Temper: Half hard | 6.35, Temper: Hard |
0.125, Temper: Half hard | 0.15, Coil width: 0.3, Temper: Half hard |
0.15, Temper: Half hard | |
Stainless Steel Sheets Type Aluminized Type 1, No. 2B Finish – Cold Rolled, Annealed
*No 2D Finish, No. 3 Finish – Polished One Side, No. 4 Finish – Polished One Side
Stainless Steel Gauge, Width and Length | Weight Lbs. per Sq Ft. | Est. Wt. per Sheet | |
|---|---|---|---|
7GA (.1874″) | |||
Aluminized Steel Sheet Type 1 | 48 x 96 | 7.871 | 251.9 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 7.871 | 314.8 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 7.871 | 377.8 |
10GA (.135”) | |||
Aluminized Steel Sheet Type 1 | 36 x 120 | 5.670 | 170.1 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 5.670 | 181.4 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 5.670 | 226.8 |
Aluminized Steel Sheet Type 1 | 60 x 120* | 5.670 | 283.5 |
Aluminized Steel Sheet Type 1 | 60 x 144* | 5.670 | 340.2 |
Aluminized Steel Sheet Type 1 | 72 x 120* | 5.670 | 340.2 |
11 GA (.120″) | |||
Aluminized Steel Sheet Type 1 | 36 x 96 | 5.040 | 121.0 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 5.040 | 151.2 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 5.040 | 181.4 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 5.040 | 161.3 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 5.040 | 201.6 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 5.040 | 241.9 |
Aluminized Steel Sheet Type 1 | 60 x 120 | 5.040 | 252.0 |
Aluminized Steel Sheet Type 1 | 60 x 144 | 5.040 | 302.4 |
Aluminized Steel Sheet Type 1 | 72 x 120* | 5.040 | 302.4 |
Aluminized Steel Sheet Type 1 | 72 x 144* | 5.040 | 362.9 |
12 Ga. (.105″) | |||
Aluminized Steel Sheet Type 1 | 36 x 96 | 4.410 | 105.8 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 4.410 | 132.3 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 4.410 | 158.8 |
Aluminized Steel Sheet Type 1 | 42 x 120 | 4.410 | 154.4 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 4.410 | 141.1 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 4.410 | 176.4 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 4.410 | 211.7 |
Aluminized Steel Sheet Type 1 | 60 x 96 | 4.410 | 176.4 |
Aluminized Steel Sheet Type 1 | 60 x 120 | 4.410 | 220.5 |
Aluminized Steel Sheet Type 1 | 60 x 144 | 4.410 | 264.6 |
Aluminized Steel Sheet Type 1 | 72 x 120* | 4.410 | 264.6 |
Aluminized Steel Sheet Type 1 | 72 x 144 | 4.410 | 317.5 |
13 Ga (.090″) | |||
Aluminized Steel Sheet Type 1 | 36 x 96 | 3.780 | 90.72 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 3.780 | 113.4 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 3.780 | 151.2 |
14 Ga. (.075″) | |||
Aluminized Steel Sheet Type 1 | 30 x 120 | 3.150 | 78.75 |
Aluminized Steel Sheet Type 1 | 36 x 96 | 3.150 | 75.60 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 3.150 | 94.50 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 3.150 | 113.4 |
Aluminized Steel Sheet Type 1 | 42 x 120 | 3.150 | 110.3 |
Aluminized Steel Sheet Type 1 | 42 x 144 | 3.150 | 132.3 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 3.150 | 100.8 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 3.150 | 126.0 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 3.150 | 151.2 |
Aluminized Steel Sheet Type 1 | 60 x 120 | 3.150 | 157.5 |
Aluminized Steel Sheet Type 1 | 60 x 144 | 3.150 | 189.0 |
Aluminized Steel Sheet Type 1 | 72 x 120 | 3.150 | 189.0 |
Aluminized Steel Sheet Type 1 | 72 x 144 | 3.150 | 226.8 |
16 Ga. (.060″) | |||
Aluminized Steel Sheet Type 1 | 30 x 96 | 2.520 | 50.40 |
Aluminized Steel Sheet Type 1 | 30 x 120 | 2.520 | 63.00 |
Aluminized Steel Sheet Type 1 | 36 x 96 | 2.520 | 60.48 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 2.520 | 75.60 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 2.520 | 90.72 |
Aluminized Steel Sheet Type 1 | 42 x 120 | 2.520 | 88.20 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 2.520 | 80.64 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 2.520 | 100.8 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 2.520 | 121.0 |
Aluminized Steel Sheet Type 1 | 60 x 96 | 2.520 | 100.8 |
Aluminized Steel Sheet Type 1 | 60 x 120 | 2.520 | 126.0 |
Aluminized Steel Sheet Type 1 | 60 x 144 | 2.520 | 151.2 |
18 Ga. (.048″) | |||
Aluminized Steel Sheet Type 1 | 30 x 96 | 2.016 | 40.32 |
Aluminized Steel Sheet Type 1 | 30 x 120 | 2.016 | 50.40 |
Aluminized Steel Sheet Type 1 | 36 x 96 | 2.016 | 48.38 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 2.016 | 60.48 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 2.016 | 72.58 |
Aluminized Steel Sheet Type 1 | 42 x 120 | 2.016 | 70.56 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 2.016 | 64.51 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 2.016 | 80.64 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 2.016 | 96.77 |
Aluminized Steel Sheet Type 1 | 60 x 120 | 2.016 | 100.8 |
Aluminized Steel Sheet Type 1 | 60 x 144 | 2.016 | 121.0 |
19 Ga. (.042″) | |||
Aluminized Steel Sheet Type 1 | 36 x 120 | 1.764 | 52.92 |
20 Ga. (.036″) | |||
Aluminized Steel Sheet Type 1 | 30 x 96 | 1.512 | 30.24 |
Aluminized Steel Sheet Type 1 | 30 x 120 | 1.512 | 37.80 |
Aluminized Steel Sheet Type 1 | 36 x 96 | 1.512 | 36.29 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 1.512 | 45.36 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 1.512 | 54.43 |
Aluminized Steel Sheet Type 1 | 42 x 120 | 1.512 | 52.92 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 1.512 | 48.38 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 1.512 | 60.48 |
Aluminized Steel Sheet Type 1 | 48 x 144 | 1.512 | 72.58 |
22 Ga. (.030″) | |||
Aluminized Steel Sheet Type 1 | 30 x 96 | 1.260 | 25.20 |
Aluminized Steel Sheet Type 1 | 30 x 120 | 1.260 | 61.50 |
Aluminized Steel Sheet Type 1 | 36 x 96 | 1.260 | 30.24 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 1.260 | 37.80 |
Aluminized Steel Sheet Type 1 | 36 x 144 | 1.260 | 45.36 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 1.260 | 40.32 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 1.260 | 50.40 |
24 Ga. (.024″) | |||
Aluminized Steel Sheet Type 1 | 30 x 96 | 1.008 | 20.16 |
Aluminized Steel Sheet Type 1 | 30 x 120 | 1.008 | 25.20 |
Aluminized Steel Sheet Type 1 | 36 x 96 | 1.008 | 24.19 |
Aluminized Steel Sheet Type 1 | 36 x 120 | 1.008 | 30.24 |
Aluminized Steel Sheet Type 1 | 48 x 96 | 1.008 | 32.26 |
Aluminized Steel Sheet Type 1 | 48 x 120 | 1.008 | 40.32 |
26 Ga. (.018″) | |||
Aluminized Steel Sheet Type 1 | 30 x 96 | .7560 | 15.12 |
Aluminized Steel Sheet Type 1 | 30 x 120 | .7560 | 18.90 |
Aluminized Steel Sheet Type 1 | 36 x 96 | .7560 | 18.14 |
Aluminized Steel Sheet Type 1 | 36 x 120 | .7560 | 22.68 |
Aluminized Steel Sheet Type 1 | 48 x 96 | .7560 | 24.1 |
Aluminized Steel Sheet Type 1 | 48 x 120 | .7560 | 30.24 |
28 Ga. (.015″) | |||
Aluminized Steel Sheet Type 1 | 36 x 96 | .630 | 15.12 |
Aluminized Steel Sheet Type 1 | 36 x 120 | .630 | 18.90 |
Type Aluminized – Flattened
Long way of diamond runs parallel to length of sheet
Style Designation | Size in Inches | Wt. per Sq. Ft. in Lbs. | Wt. Per Sheet | |
|---|---|---|---|---|
Expanded Aluminized Steel Type 1 Plate | 3/4__9 | 48 x 96 | 1.95 | 62.4 |
Expanded Aluminized Steel Type 1 Plate | 1/2__13 | 48 x 96 | 1.78 | 56.9 |
Expanded Aluminized Steel Type 1 Plate | 1/2__16 | 48 x 96 | 0.86 | 27.5 |
Expanded Aluminized Steel Type 1 Plate | 1/2__18 | 48 x 96 | 0.69 | 22.1 |
Expanded Aluminized Steel Type 1 Plate | 1-1/2__9 | 48 x 96 | 1.31 | 41.9 |
Expanded Aluminized Steel Type 1 Plate | 3/4__13 | 48 x 96 | 0.86 | 27.5 |
Expanded Aluminized Steel Type 1 Plate | 3/4__16 | 48 x 96 | 0.57 | 18.2 |
Expanded Aluminized Steel Type 1 Plate | 3/4__18 | 48 x 96 | 0.46 | 14.7 |
Expanded Aluminized Steel Type 1 Plate | 1-1/2__13 | 48 x 96 | 0.65 | 20.8 |
The following size chart lists is the approximate decimal equivalents for metal gauges along with standard tolerances. Also please note that industry standard permits deviations from nominal thicknesses.
NOMINAL DECIMAL | STANDARD VARIANCE FROM | |
|---|---|---|
SHEET METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
7 | 0.1793 | 0.0080 |
8 | 0.1644 | 0.0080 |
9 | 0.1495 | 0.0080 |
10 | 0.1345 | 0.0070 |
11 | 0.1196 | 0.0050 |
12 | 0.1046 | 0.0050 |
13 | 0.0897 | 0.0050 |
14 | 0.0747 | 0.0040 |
15 | 0.0673 | 0.0040 |
16 | 0.0598 | 0.0030 |
17 | 0.0538 | 0.0030 |
18 | 0.0478 | 0.0030 |
19 | 0.0418 | 0.0030 |
20 | 0.0359 | 0.0030 |
21 | 0.0329 | 0.0025 |
22 | 0.0299 | 0.0020 |
23 | 0.0269 | 0.0020 |
24 | 0.0239 | 0.0020 |
25 | 0.0209 | 0.0015 |
26 | 0.0179 | 0.0015 |
28 | 0.0149 | 0.0010 |
|
|
a world leading aluminized steel type 1 plate manufacturers. check astm a463 t1-40 sheet, astm a463 t1-25 plate price in india
Our company is an ISO certified stockist and supplier of Type 1 Aluminized Steel Plate with a wide product range, Reliable Traders, Exporters and Effective Sourcing. 35 Years of Experience of manufacturing Astm A463 Type 1 Plate Aluminized Steel
| ASTM A463 Aluminized Stainless Steel Type 1 Foil | ASTM A463 Aluminized Stainless Steel Type 1 2B Sheet |
| SA 463 Aluminized Stainless Steel Type 1 Clad Plate | SA 463 Aluminized Stainless Steel Type 1 Flat Sheet |
| ASTM A463 Aluminized Stainless Steel Type 1 Polished Plate | SS Aluminized Type 1 Checker Plate |
| SA 463 Aluminized Stainless Steel Type 1 cold rolled sheet | ASTM A463 Aluminized Stainless Steel Type 1 Hot Rolled Coil, Strip And Plate |
| Aluminized Stainless Steel Type 1 Sheets | Aluminized Stainless Steel Type 1 Coil |
| Aluminized Stainless Steel Type 1 Checker Plate | ASTM A463 Aluminized Stainless Steel Type 1 Quarto Plate |
| Aluminized Type 1 Plates | Aluminized Stainless Steel Type 1 Coil |
| Aluminized Stainless Steel Type 1 Coils | SS Aluminized Type 1 Coil |
| Aluminized Stainless Steel Type 1 Hot rolled plate | Rolling Sheets Aluminized Type 1 |
| Cold Rolled Aluminized Stainless Steel Type 1 Sheet Suppliers | Aluminized Stainless Steel Type 1 Checker Plate |
| Aluminized Stainless Steel Type 1 Shim Sheet | SS Sheet Aluminized Type 1 |
| ASTM A463 Aluminized Stainless Steel Type 1 Corrugated Sheet | ASTM A463 Aluminized Stainless Steel Type 1 Expanded Sheet |
| ASTM A463 Aluminized Stainless Steel Type 1 Rolls Sheets | ASTM A463 Aluminized Stainless Steel Type 1 Foil Rolls |
| Aluminized Stainless Steel Type 1 Chequered Plates | ASME SA 463 Aluminized Type 1 Clad Plates |
| ASME SA 463 Aluminized Type 1 Chequer Plate | Aluminized Stainless Steel Type 1 Plate |
| Aluminized Type 1 B. Q. Profile | ASTM A463 Aluminized Type 1 Coil |
| Aluminized Type 1 Sheet | ASTM A463 Aluminized Type 1 Rolling Sheets |
| ASTM A463 Aluminized Stainless Steel Type 1 Checker Plate | ASTM A463 Aluminized Stainless Steel Type 1 Coil Slitting |
| ASTM A463 Aluminized Type 1 Sheet | ASTM A463 Aluminized Type 1 Clad Plates |
| ASTM A463 Aluminized Type 1 Plate | Aluminized Stainless Steel Type 1 Rolling Sheets |
| ASTM A463 Aluminized Stainless Steel Type 1 Flat Strip | ASTM A463 Aluminized Stainless Steel Type 1 Bbq Plate |
| ASTM A463 Type 1 Chequered Plates | ASTM A463 Aluminized Steel Type 1 Strips |
| ASTM A463 Type 1 Coil | ASTM A463 Grade Aluminized Type 1 Coil |
| ASTM A463 Aluminized Type 1 Coil | Aluminized Stainless Steel Type 1 Strips |
| Decorative ASTM A463 Aluminized Stainless Steel Type 1 Sheet | Mirror Finish ASTM A463 Aluminized Stainless Steel Type 1 Sheet |
| ASTM A463 Aluminized Type 1 Strips | SA 463 Aluminized Type 1 Strips |
| ASTM A463 Aluminized Stainless Steel Type 1 Etching Sheet | ASTM A463 Aluminized Stainless Steel Type 1 Floor Sheet |
| Aluminized Type 1 Stainless Steel Rolling Plate | Aluminized Stainless Steel Type 1 Precision Strip |
| ASME SA 463 Aluminized Type 1 Rolling Plate | ASME SA 463 Aluminized Type 1 Precision Strip |
| Aluminized Type 1 Stainless Steel Strips | ASTM A463 Type 1 Strips |
| Zinc Coated ASTM A463 Aluminized Stainless Steel Type 1 Sheet | ASTM A463 Aluminized Stainless Steel Type 1 Diamond Plate |
| ASTM A463 Aluminized Stainless Steel Type 1 Perforated Plate | Aluminized Stainless Steel Type 1 Chequered Plates |
| ASTM A463 Aluminized Type 1 Strips | ASTM A463 Aluminized Type 1 Strips |
| Aluminized Stainless Steel Type 1 Rolling Sheets | Aluminized Stainless Steel Type 1 Rolling Sheets |
| ASME SA 463 Aluminized Type 1 Rolling Sheets | Aluminized Type 1 SS Rolling Sheets |
| ASTM A463 Type 1 Rolling Sheets | Alloy ASTM A463 Type 1Rolling Sheets |
| ASTM A463 Aluminized Type 1 Rolling Sheets | Aluminized Stainless Steel Type 1 Chequered Plates |
| ASTM A463 Aluminized Stainless Steel Type 1 Mirror Sheet | ASTM A463 Aluminized Stainless Steel Type 1 Patterned Sheet |
| Aluminized Stainless Steel Type 1 Sheet | Aluminized Stainless Steel Type 1 Sheet |
| Chequer Plate Type 1 Aluminized | ASTM A463 Type 1 Sheet |
| ASTM A463 Aluminized Type 1 Sheet | ASTM A463 Aluminized Type 1 Sheet |
| Aluminized Stainless Steel Type 1 Hot rolled plate | Aluminized Stainless Steel Type 1 Hot rolled plate |
| ASTM A463 Aluminized Stainless Steel Type 1 Shim Stock | ASTM A463 Aluminized Stainless Steel Type 1 Flat Shim |
| Aluminized Stainless Steel Type 1 Hot rolled plate | Hot rolled plate Type 1 Aluminized |
| ASTM A463 Type 1 Hot rolled plate | ASTM A463 Aluminized Type 1 Hot rolled plate |
| ASTM A463 Aluminized Type 1 Hot rolled plate | Aluminized Stainless Steel Type 1 Perforated Sheet |
| Embossed ASTM A463 Aluminized Stainless Steel Type 1 Sheet | Thin ASTM A463 Aluminized Stainless Steel Type 1 Sheet |
| Aluminized Stainless Steel Type 1 Perforated Sheet | Aluminized Stainless Steel Type 1 Perforated Sheet |
| ASTM A463 Aluminized Stainless Steel Type 1 Hairline Sheet | No.4 ASTM A463 Aluminized Stainless Steel Type 1 Sheet |
| Perforated Sheet Type 1 Aluminized | ASTM A463 Type 1 Perforated Sheet |
| ASTM A463 Aluminized Type 1 Perforated Sheet | ASTM A463 Aluminized Type 1 Perforated Sheet |
| Aluminized Stainless Steel Type 1 Clad Plates | Aluminized Stainless Steel Type 1 Clad Plates |
| ASTM A463 Aluminized Stainless Steel Type 1 Checker Plate | ASTM A463 Aluminized Stainless Steel Type 1 Shims |
| Clad Plates Type 1 Aluminized | Aluminized Stainless Steel Type 1 Clad Plates |
| ASTM A463 Type 1 Clad Plates | ASTM A463 Aluminized Type 1 Clad Plates |
| ASTM A463 Aluminized Type 1 Clad Plates | Aluminized Type 1 Stainless Steel Plate |
| ASTM A463 Aluminized Stainless Steel Type 1 Design Sheet | ASTM A463 Aluminized Stainless Steel Type 1 Shim Stock |
| Aluminized Stainless Steel Type 1 Plate | ASME SA 463 Aluminized Type 1 Flat Sheet |
| Plate Aluminized Type 1 | ASTM A463 Type 1 Plate |
| ASTM A463 Grade Aluminized Type 1 Plate | ASTM A463 Aluminized Type 1 Plate |
| Decorative 8K Mirror Aluminized Stainless Steel Type 1 Sheet | Aluminized Stainless Steel Type 1 Sheet |
| Aluminized Stainless Steel Type 1 Clad Plates | Hot rolled ASTM A463 Aluminized Type 1 4′ x 8′ stainless steel sheets |
Suppliers & exporter of mill condition coil and plate such as Type 1 Aluminized Steel Plate, Sheets and strip for pressure vessels and for general applications.
CLASSIFICATION | Chemical Composition (%) | ||||
C | Si | Mn | P | S | |
Commercial Quality | 0.15&Under | – | 0.50&Under | 0.035&Under | 0.040&Under |
Drawing Quality | 0.10&Under | – | 0.50&Under | 0.025&Under | 0.035&Under |
Deep-Drawing Quality | 0.10&Under | – | 0.50&Under | 0.025&Under | 0.035&Under |
MATERIAL | CLASS | CODE | TENSILE TEST | HARDNESS(HrB) | ||
YP(kgf/mm2) | TS(kgf/mm2) | E (%) | ||||
HOT-DIPPED STEEL SHEET | Commercial | SA1C | 23 | 36 | 35 | 40 |
Drawing | SA1D | 21 | 32 | 38 | 38 | |
Deep-Drawing | SA1E | 20 | 31 | 40 | 35 | |
COLD-ROLLED STEEL SHEET | Commercial | SPCC | 24 | 34 | 38 | 36 |
CLASS | CODE | ELONGATION (%) | Bending Test | |||
0.4 ≤ t < 0.6 | 0.6≤ t <1.0 | 1.0≤ t | Bend Angle | Inner Spacing of Bend | ||
Commercial Quality | SA1C | 180°C | 4t | |||
Drawing Quality | SA1D | ≥30 | ≥32 | ≥34 | 180°C | 1t(*) |
Deep-Drawing Quality | SA1E | ≥34 | ≥36 | ≥38 | 180°C | 1t(*) |
ASTM Standard for Astm A463 aluminized steel type 1 Sheets & Plate
Quality Designation | YS | UTS | Elongation% | “n” | “rm” | ||
ksi | MPa | ksi | MPa | ||||
Commercial Steel | 46.5 | 324 | 55.9 | 386 | 34.1 | – | – |
Deep Drawing Steel | 32.8 | 228 | 49.1 | 338 | 41.2 | 0.22 | 1.3 |
Extra Deep Drawing Steel | 25.1 | 172 | 45.2 | 310 | 43.1 | 0.23 | 1.7 |
Extra Deep Drawing Steel Plus | 23.9 | 165 | 45.1 | 310 | 44.2 | 0.23 | 1.9 |
DIN Standard for Astm A463 aluminized steel type 1 Sheets & Plate
Quality | Use | YS (MPa) | UTS (MPa) | Elongation % | “n” | “r” |
51+AS | Roll forming – Lock seaming | 270 – 500 | ≥ 22 | |||
52+AS | Average drawing | 140 – 300 | 270 – 420 | ≥ 26 | ||
53+AS | Difficult drawing | 140 – 260 | 270 – 380 | ≥ 30 | ||
54+AS | Difficult drawing | 120 – 220 | 260 – 350 | ≥ 34 | 1.4 | 0.18 |
55+AS | Very difficult drawing 600°< T < 800°C | 140 – 240 | 270 – 370 | ≥ 30 | ||
56+AS | Extra- deep drawing | 120 – 180 | 260 – 350 | ≥ 39 | 1.7 | 0.20 |
57+AS | Extra- deep drawing | 120 – 170 | 260 – 350 | ≥ 41 | 1.9 | 0.21 |
Heat Reflectivity for Astm A463 aluminized steel type 1 Sheets & Plate
Aluminized Coated Steel provided with excellent thermal reflectivity due to the fineness of its surface. The thermal reflectivity of Aluminized Coated Steel at 450℃ reaches up to approximately 80%, and this is applied to thermal reflectors for toasters, gas ranges, oil stove, and so forth.
HEAT REFLECTIVITY in % | Aluminized coated steel | Electro-Galvanized Sheet | Gl Sheets | |
Spangle | Zero – Spangle | |||
100℃ X 24hrs. | 90 | 90 | 90 | 90 |
400℃ X 24hrs. | 80 | 30 | 20 | 20 |
Aluminized Coated Type 1
Why did it take place (objective)?
Mild Steel as the name suggests is holds very mild strength towards atmospheric, acidic and water corrosion. Mild Steel is highly prone to Rusting due to Oxidation that is when Oxygen in air reacts with Fe on the surfaces and forms Fe2O3 and Fe3O4. Gradually they start disintegrating from the Surface and lead to chipping off in form of Flakes, Which eventually leadings to reduction in the Section or the thickness of the Steel article. It reduced the strength and reliability of the structure of steel article.
Stainless Steel was Invented 100 years back to fight the problems of Corrosion but the cost of Stainless Steel was quite higher then Mild Steel, commercially it was not viable to substitute Mild steel with Stainless Steel.
In order to overcome this problem of Oxidation and Corrosion resistance to Steel in commercially viable manner- Coated Steel products were introduced mostly commonly Gavanized Steel was used.
But over a period of time there were various application (thermal application & Food Grade) for which Galvanized Steel coating was not suitable hence there was a need to change to coating combination from Zinc to Aluminium or aluminium Alloy coating. When comparing Aluminized steel and stainless steel, the former ones have high thermal conductivity. Unlike the aluminized steel, the stainless steel has a high thermal expansion coefficient, which means that it could change shape when exposed to overheat. Â Moreover, Aluminized steel comes with electrostatic surface and it is because of it that it is mainly used in making exhaust systems and mufflers.
With Advancing Technology and complex application in industry there was a demand for products with Higher temperature resistance and better performances then Aluminized Steel, eventually the base metal was substituted fo Stainless Steel (409/439) and a new product was introduced ie Aluminzied Stainless Steel.
Coating Method for Astm A463 aluminized steel type 1 Sheets & Plate
Hot Dipping continuous coating method is used for production of the product, in which base metal is dipped in a Pot In this case of 88 to 91 % Aluminum to 5 to 11 % Silicon. In this method both sides are coated simultaneously.This process assures a tight metallurgical bond between the steel sheet and its aluminium coating, producing a material with a unique combination of properties possessed neither by steel nor by aluminium alone.
Coating Designation | Coating Weight Min. | Approx. Ctg. Thickness per side (Mils) | |
oz./ft2 | g/m2 | ||
T1 13 | 0.13 | 40 | 0.25 |
T1 25 | 0.25 | 76 | 0.50 |
T1 26 | 0.26 | 80 | 0.50 |
T1 40 | 0.40 | 122 | 0.80 |
T1 60 | 0.60 | 183 | 1.20 |
Coating Combination
Hot-dip coated with an aluminum/silicon alloy containing 5% to 11% silicon to promote better adherence. It is intended principally for heat resisting applications and also for uses where corrosion resistance and heat are involved. Possible end users are mufflers, furnaces, ovens, ranges, heaters, water heaters, fireplaces, and baking pans.
- Aluminized Steel Sheet Type 1 Cutting
- Aluminized Steel Type 1 Plate Forming Drilling
- Astm A463 Type 1 Sheet Machining
- Astm A463 Type 1 Plate Grinding
- Astm A463 Type 1 Sheet Aluminized Steel Testing
- Astm A463 T1-40 Sheet for Industrial Heaters & Industrial Ovens.
- Astm A463 T1-25 Sheet for Bakery Mould Products.
- Astm A463 T1-25 Plate for Household Equipments
- Astm A463 T1-40 Plate for Charcoal Based stoves etc.
- Aluminized Steel Sheet Type 1 for Ranges.
Astm A463 Type 1 Sheet & Plate Useful Information
Characteristics
Product Features
Corrosion Resistance Aluminized Steel Type 1 has superior performance compared to zinc coated materials for resistance to atmospheric and salt spray corrosion. Formability Aluminized Steel Type 1 can be used to produce parts containing simple bends to parts with deep drawing requirements. Heat Reflectivity Aluminized Steel Type 1 has excellent heat reflectivity during exposures to temperatures below 800 °F (427 °C), reflecting up to 80% of the radiant heat that impinges upon it.
High Temperature Properties Aluminized Steel Type 1 is an excellent heat resistant material effective up to 1250 °F (677 °C). ALUMI-THERM® is a product designed to provide enhanced high temperature strength at temperatures approaching 1400 °F (760 °C).
Paintability
For best results, Aluminized Steel Type 1 should be cleaned with a mild alkaline cleaner to remove dirt and oil, followed by phosphate with a zinc phosphate. Chromium and aluminum oxides also give good results as a pretreatment on coil coating lines. Mild abrasion prior to pre-treating may also be used to enhance mechanical bonding of the paint.
Weldability
A variety of welding processes can be used to join Aluminized Steel Type 1, provided that welding procedures are adapted to the special properties of the material. Resistance spot and projection welding processes are especially suited for Aluminized Steel. High frequency resistance welding and various arc welding processes are also compatible with Aluminized Steel.
Heat Resistance
The heat resistance of ACMS is excellent compared to that of zinc-coated steel sheet, galvanized steel sheet, and cold-rolled steel sheet. Absolutely no changes in appearance and discoloration are observed even under extended exposure to the temperature of 450℃. At temperatures higher than 450℃ the coating material transforms to aluminium-iron alloy layer so that heat resistance and corrosion resistance are preserved even if discoloration occurs. The coating maintains its sacrificial properties up to the temperature of approximately 600℃.
